ARIMA Time Series predictions using Box-Jenkins approach with R
This document shows the way to use R to make predictions with ARIMA models.
The data used in this document, can be downloaded in the following link:
http://www.robhyndman.info/TSDL/data/abraham4.dat
Box-Jenkins Methodology has the following steps to make ARIMA models:
Note: The piece of code shown in this document appears in a red box while the
simulation of a R session is shown in a blue box.
I. Model identification:If you want to know if your data is stationary, you will look up your data. Load this piece of code to see the form of your data.
###################################
# DATA ANALYSIS SCRIPT #
# Autor: Juan Antonio Breña Moral #
# Email: bren@juanantonio.info #
###################################
###################################
# R ENGINE SETTINGS #
###################################
#Sentence written to set working directory
WD <- "C://Documents and Settings/JAB/Escritorio";
setwd(WD);
# make sure working directory is set
getwd();
# set digits
options("digits"=3)
###################################
# ARIMA MODEL SCRIPT #
###################################
INSTALL_LIBRARIES <- function(){
install.packages("forecast");
install.packages("nortest");
install.packages("quadprog");
install.packages("zoo");
install.packages("tseries");
}
#Function used to load libraries
#FORECAST: www-personal.buseco.monash.edu.au/~hyndman/Rlibrary/forecast/
#NORMAL TEST: http://cran.r-project.org/src/contrib/Descriptions/nortest.html
#TIME SERIES: //cran.r-project.org/src/contrib/Descriptions/tseries.html
LOAD_LIBRARIES <- function(){
library("forecast");
library("nortest");
library("tseries");
}
# Funcion que genera el mensaje de cabecera.
HEADER <-function(){
cat("\n::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::");
cat("\n:: SALES PREDICTION | AUTHOR: Juan Antonio Breña Moral ::");
cat("\n:: VERSION: 2006-06-17 | DOWNLOADS: http://www.juanantonio.info ::");
cat("\n:: EMAIL: bren@juanantonio.info ::");
cat("\n::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::");
cat("\n:: DESCRIPTION: ::"):
cat("\n:: Sales Prediction, is a Script to make prediccions. It was ::");
cat("\n:: designed to control a sales budget in any company using ::");
cat("\n:: ARIMA Time Series statistical techniques. The script needs ::");
cat("\n:: a sales data to start to build a ARIMA model to make a ::");
cat("\n:: predictions. This script is very useful to design a sales ::");
cat("\n:: budget in the following exercise and control it. The ::");
cat("\n:: methodology used to build ARIMA model is Box-Jenkins. ::");
cat("\n::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::\n");
}
TIME_SERIES <- function(DATA,F,S){
DATOS.TS <- ts(DATA,frequency = F, start = S);
return(DATOS.TS);
}
JAB.PREDICTION.EDA <- function(DATOS){
FILE_NAME <- format(Sys.time(), "%X");
FILE_EXTENSION <- "jpeg";
#Graphical Output
par(mfrow= c(2,2));
plot(DATOS,type="l")
hist(DATOS, probability =T);
lines(density(DATOS), col="red");
qqnorm(DATOS);
abline(0,1,col="red");
boxplot(DATOS, horizontal=T);
par(mfrow= c(1,1));
}
#FROM: http://tolstoy.newcastle.edu.au/R/help/99b/0171.html
mykurtosis <- function(x) {
m4 <- mean((x-mean(x))^4)
kurt <- m4/(sd(x)^4)-3
kurt
}
myskewness <- function(x) {
m3 <- mean((x-mean(x))^3)
skew <- m3/(sd(x)^3)
skew
}
JAB.PREDICTION.EDA_TABLE <- function(DATAS){
COLUMN_NAMES <- c("MEAN","MEDIAN","SD","KURTOSIS","SKEWNESS");
DATA <- c();
DATA[1] <- mean(DATAS);
DATA[2] <- median(DATAS);
DATA[3] <- sd(DATAS);
DATA[4] <- mykurtosis(DATAS);
DATA[5] <- myskewness(DATAS);
names(DATA) <- COLUMN_NAMES;
print("JAB: EDA VIEW 1.0")
print(DATA);
stem(DATAS);
}
JAB.PREDICTION.NORMAL_TESTS <- function(DATAS){
COLUMN_NAMES <- c("SHAPIRO","ANDERSON-DARLING",
"CRAMER-VON MISES","KS","JARQUE-BERA");
DATA <- c();
DATA[1] <- shapiro.test(DATAS)$p.value;
DATA[2] <- ad.test(DATAS)$p.value;
DATA[3] <- cvm.test(DATAS)$p.value;
DATA[4] <- lillie.test(DATAS)$p.value;
DATA[5] <- jarque.bera.test(DATAS)$p.value;
names(DATA) <- COLUMN_NAMES;
print("JAB: NORMAL TEST TABLE 1.0")
print(DATA);
}

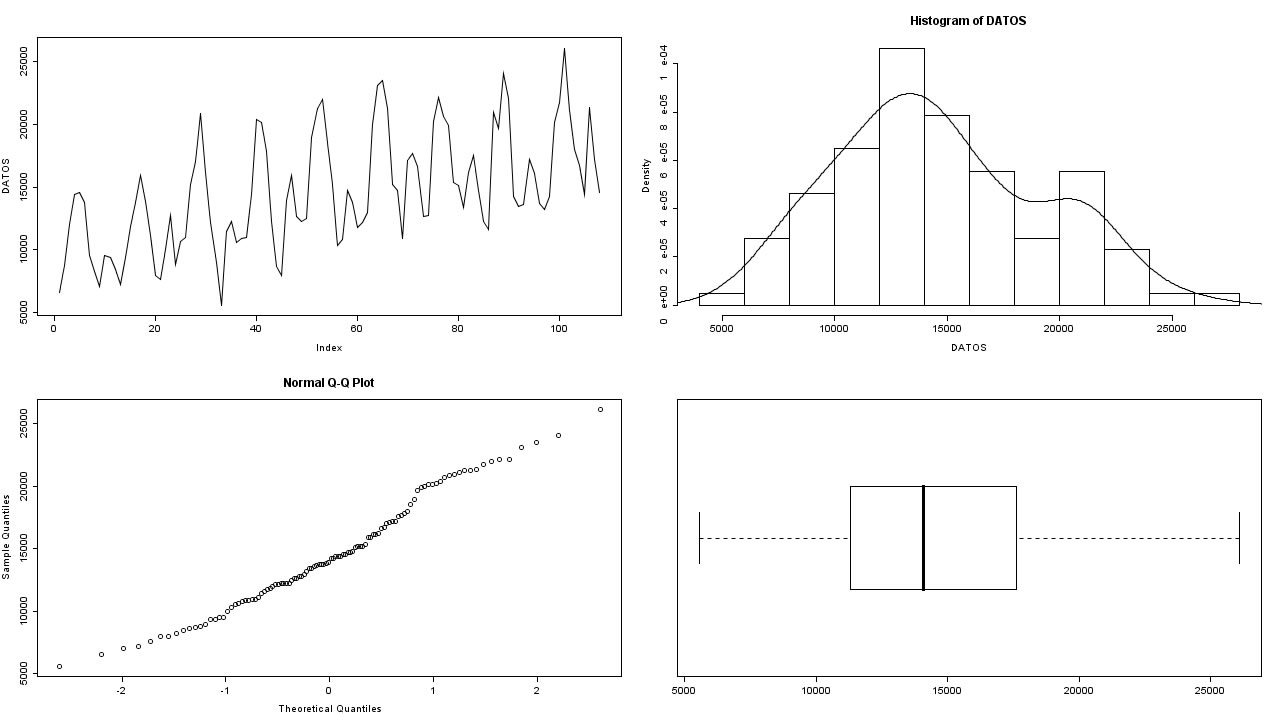

Enter the data in R system using JGR as R GUI or using RClass. # To predict anything, you have to get the data SALES <- scan(); 6550 8728 12026 14395 14587 13791 9498 8251 7049 9545 9364 8456 7237 9374 11837 13784 15926 13821 11143 7975 7610 10015 12759 8816 10677 10947 15200 17010 20900 16205 12143 8997 5568 11474 12256 10583 10862 10965 14405 20379 20128 17816 12268 8642 7962 13932 15936 12628 12267 12470 18944 21259 22015 18581 15175 10306 10792 14752 13754 11738 12181 12965 19990 23125 23541 21247 15189 14767 10895 17130 17697 16611 12674 12760 20249 22135 20677 19933 15388 15113 13401 16135 17562 14720 12225 11608 20985 19692 24081 22114 14220 13434 13598 17187 16119 13713 13210 14251 20139 21725 26099 21084 18024 16722 14385 21342 17180 14577 LOAD_LIBRARIES(); JAB.PREDICTION.EDA(SALES); JAB.PREDICTION.EDA_TABLE(SALES); JAB.PREDICTION.NORMAL_TESTS(SALES);
[1] "JAB: EDA VIEW 1.0"
MEAN MEDIAN SD KURTOSIS SKEWNESS
14595.1111111 14076.0000000 4525.2139131 -0.6600995 0.3106385
5 | 6
6 | 6
7 | 026
8 | 0035678
9 | 04455
10 | 03678999
11 | 015678
12 | 012233356788
13 | 02446788889
14 | 2344466788
15 | 1222499
16 | 11267
17 | 0122678
18 | 069
19 | 79
20 | 0112479
21 | 012337
22 | 011
23 | 15
24 | 1
25 |
26 | 1
[1] "JAB: NORMAL TEST TABLE 1.0"
SHAPIRO ANDERSON-DARLING CRAMER-VON MISES KS JARQUE-BERA
0.06335382 0.03812055 0.04695266 0.11516182 0.17425073

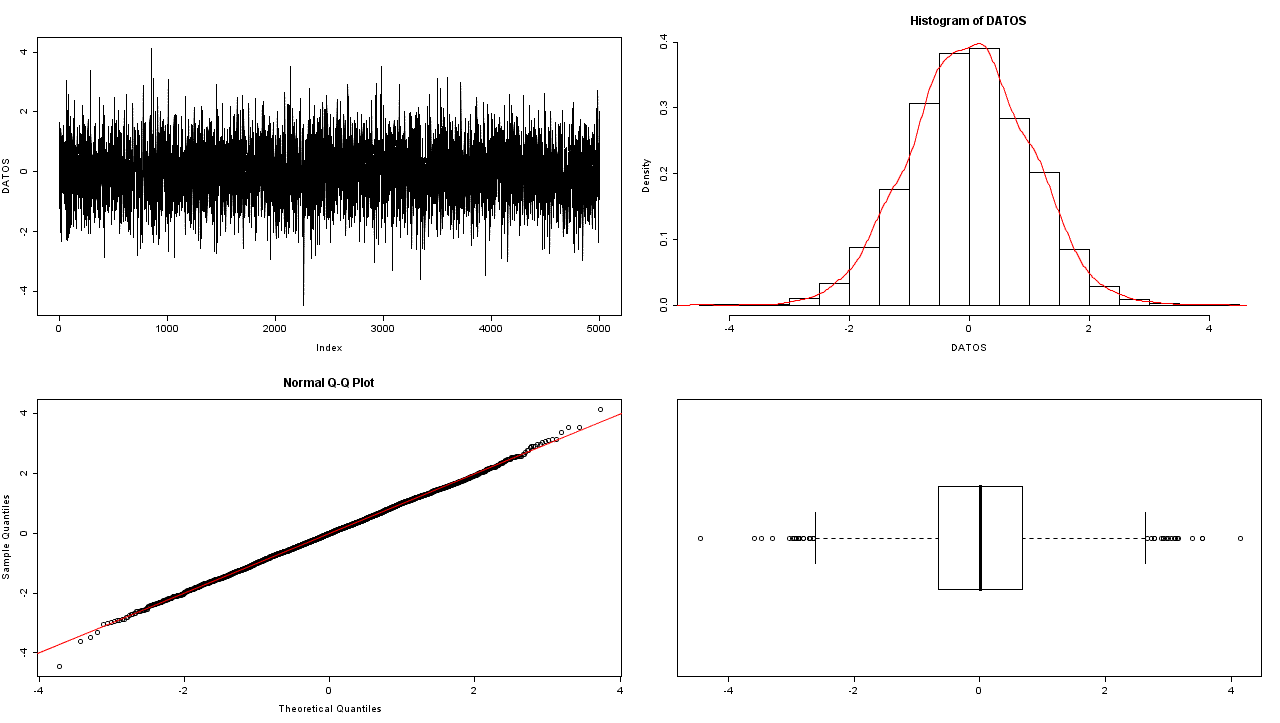

If you notice, the sales are asymetric. Data fails different tests for normality. NORMAL_SAMPLE <- rnorm(5000); JAB.PREDICTION.EDA(NORMAL_SAMPLE); JAB.PREDICTION.EDA_TABLE(NORMAL_SAMPLE); JAB.PREDICTION.NORMAL_TESTS(NORMAL_SAMPLE);
[1] "JAB: EDA VIEW 1.0"
MEAN MEDIAN SD KURTOSIS SKEWNESS
-0.0001047225 0.0006451141 0.9922556060 0.0825848178 -0.0086063633
The decimal point is at the |
-4 | 5
-4 |
-3 | 65
-3 | 3000
-2 | 999998877777666666666665
-2 | 44444444444444333333333322222222222222222221111111111111111111111111+8
-1 | 99999999999999999999999999999999999888888888888888888888888888888888+173
-1 | 44444444444444444444444444444444444444444444444444444444444444444444+384
-0 | 99999999999999999999999999999999999999999999999999999999999999999999+715
-0 | 44444444444444444444444444444444444444444444444444444444444444444444+785
0 | 00000000000000000000000000000000000000000000000000000000000000000000+819
0 | 55555555555555555555555555555555555555555555555555555555555555555555+650
1 | 00000000000000000000000000000000000000000000000000000000000000000000+439
1 | 55555555555555555555555555555555555555555555555555555555555555555555+166
2 | 00000000000000000000011111111111111111222222222222222223333333333344
2 | 555555555566666666677889999
3 | 00011114
3 | 55
4 | 1
[1] "JAB: NORMAL TEST TABLE 1.0"
SHAPIRO ANDERSON-DARLING CRAMER-VON MISES KS JARQUE-BERA
0.4513131 0.5120592 0.6798911 0.6469248 0.4664040
II. Model estimation and verification:
TIME_SERIES <- function(DATA,F,S){
DATOS.TS <- ts(DATA,frequency = F, start = S);
return(DATOS.TS);
}
JAB.PREDICTION.BEST_ARIMA <- function(TIME_SERIES){
DATOS.BEST_ARIMA <- best.arima(DATOS.TS)
return(DATOS.BEST_ARIMA)
}
SALES.TS <- TIME_SERIES(SALES,12,1968); SALES.ARIMA <- JAB.PREDICTION.BEST_ARIMA(SALES.TS); III. Forecasting:Forecasting the future is always difficult...
